Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: HONGDA TRUCK
  • Model Number: WDY2017Y5M10T
  • Gross Vehicle Weight: 15000
  • Color:: White with red or blue ,can be customized

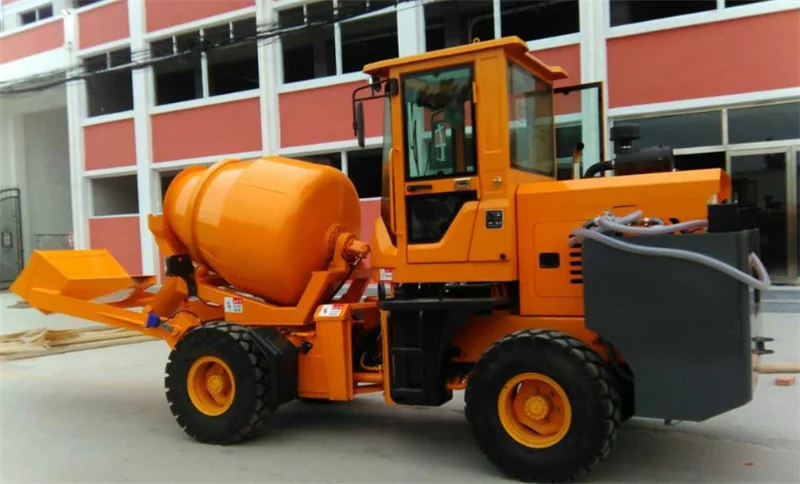

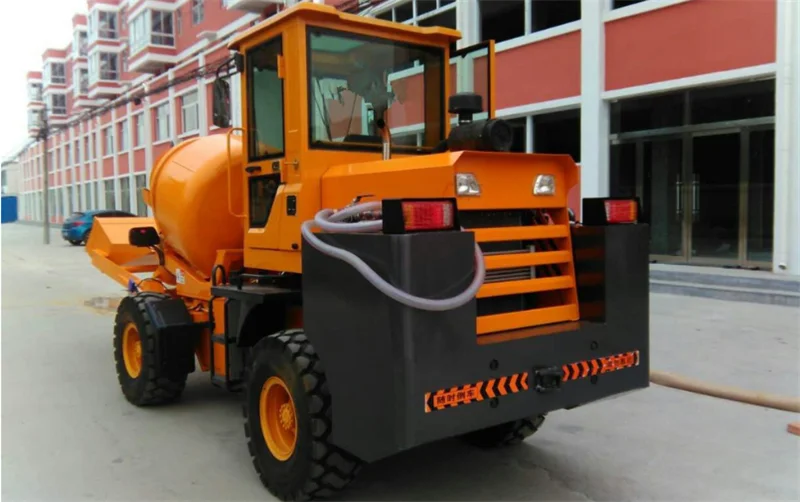

  • Product name:: HONGDA Selfloading cement mixer truck
  • Engine:: 87 TO 130 HP
  • Package:: Bulk RO-RO Container Naked
  • Certificate:: CCC IOS
  • Tire:: 12.00R20 14PR as customized
  • Volume:: 1.5 CBM TO 5 CBM
  • Aproaching Departure angle:: 14 to 11 degree

Packaging & Delivery

Delivery Time 15-30 days after received the deposit
Product Description














 Vehicle parameters

ImagesNameSpecifications
1Mixing System

Drum capacity: 4m3

Double helix, emergency unloading cover. Reverse when unload.

Hydraulically rotated through 270°for discharge to the four sides of the vehicle.

2CapacityCapacity: 3.5m3/tank  4tanks/hr  14m3/hr  110m3/day 33000m3/year
3Diesel Engine

Domestic Brand Engine. Yuchai A8QW0.

Water cooling. 4-cylinder. Rotate speed: 2200r/min. Rated power: 82KW

4Transmission

China top brand: Domestic Fenyi Axle. Hydraulic. 4x4. Off road chassis.

5SpeedLow: 0-9km/hr High: 0-20km/hr
6Hydraulic System

American Sauer-Danfoss Hydraulic System for the drum rotated. Closed system.

Domestic Zhongchuan Hydraulic System for the machine drive.

7Loader ControlHydraulic 4 way stick with electric button to control all the actions of hopper.
8LoaderCapacity: 600L Hydraulic valve
9Chute

Hydraulic rotated, Angle control.

Equipped with 2 removable shaft pins to increase the discharge height.

10BrakeHydraulic brake Front and rear independent system
11TireConstruction Machinery Tire 16/70-20
12Electrical systemVoltage: 24V DC
13

Water Tank

Oil Tank

Water tank: 2x380L. Hydraulic self-priming water pump. Washing nozzle.
Diesel tank: 100L  Hydraulic oil tank: 125L
14Weight
Dimension

8800KG  7011x2441x3310mm

15WeighingComputer control. High accuracy.

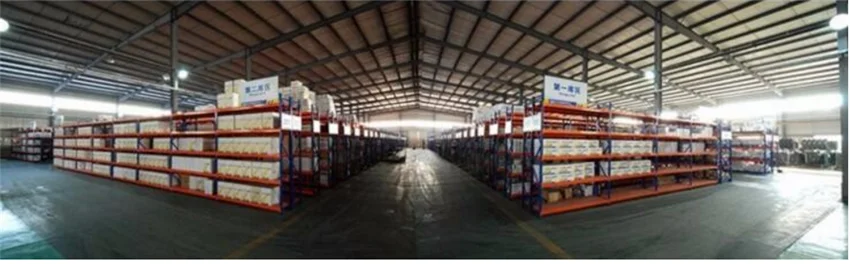

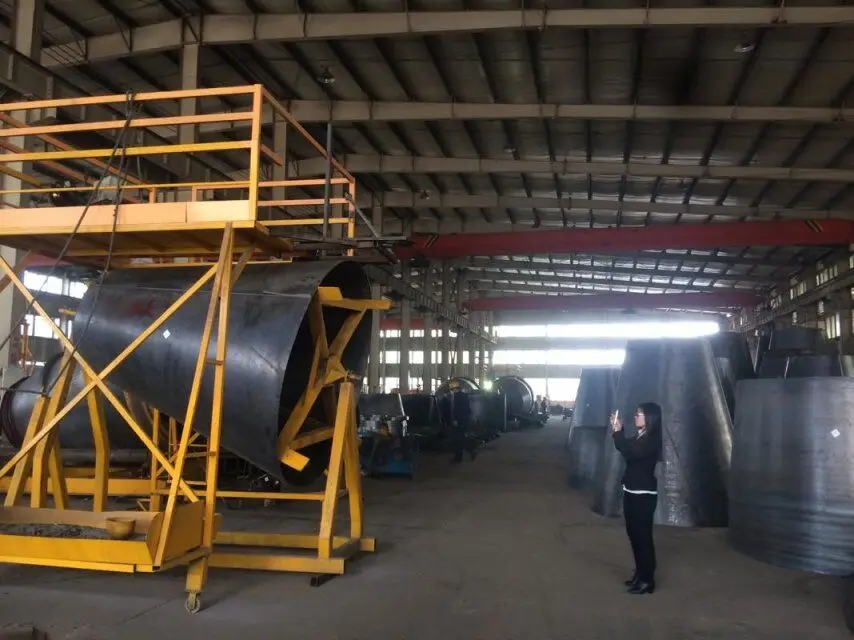

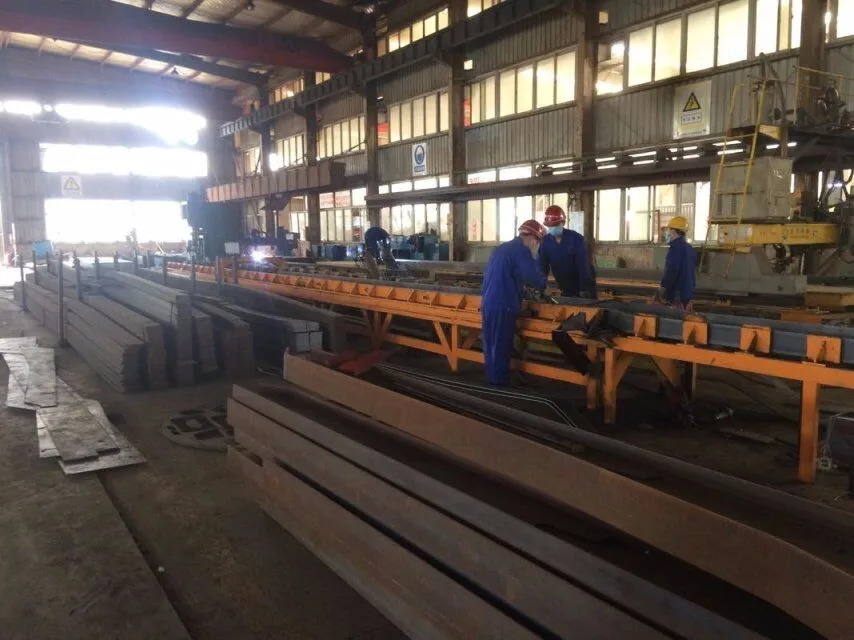

   Our factory

Packaging & Shipping

Cement   Truck Trailer  With waxing by roro ship or bulk shiping



















Welcome to visit our website and send the inquiry though our whatsapp phone number +8613080177307 .

We will reply it to you as soon as possible!











FAQ

 Q:   where is your factory ?

 A:    Our facory is in the hometown of trailers-producing center of china Zhengzhou province , is closed to shanghai city and beijing .





 Q:   where is your main market selling to ?

 A:     Our biggest market is Southeast-aisa and Africa, we also pay much attention to South-america and Mid-east market.



 Q:   Why your price is higher than some of suppliers'?

 A:    We mainly dealing the new made type trailers, we are a creative teams of doing the job . but also we have responsibilties to make sure the trucks or the tailor keep high qulity after years used . so we usually focus to future not now .

second , to meet some of the cusotmer needs , they ususally ask us to seek the used trailers . so even the second hand trailers is cheap , but we have to keep its quality , cause they are always our customers.















Our Services





We have our aftersale institute all of the world including CHINA, PAKISTAN ,SOUTH AFRICA, WESTERN UROP .................One-year  guarantee is our primary service . we also provide free easy-consumed parts to our cusotmers in 3 monthes after customer get the motor .

if you have more question of the factory , the trucks or us , pl contact with me though whatsapp or phone number +8613080177307. thank you .
